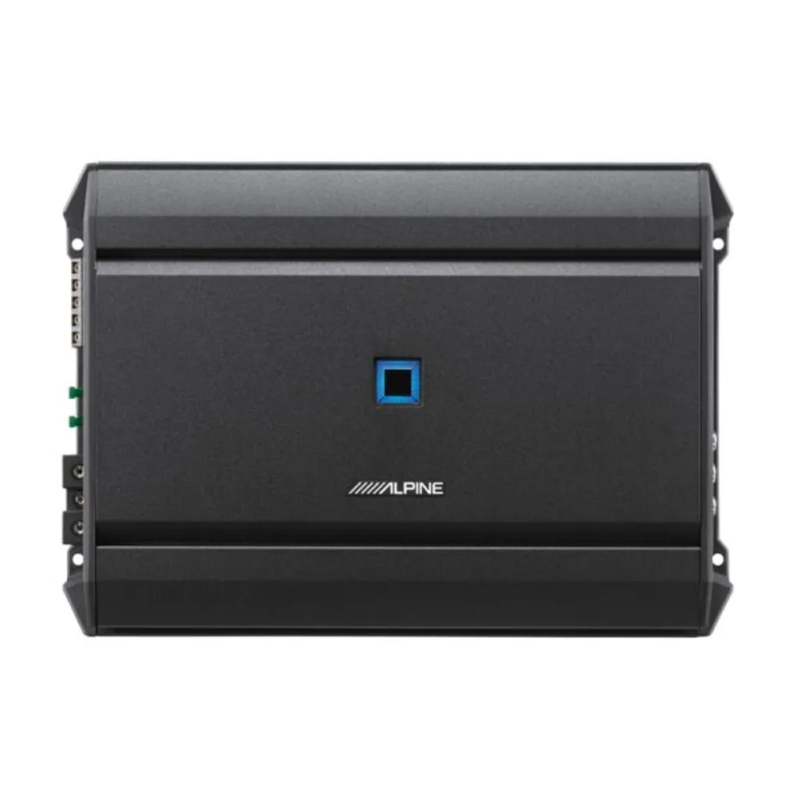

Alpine SA55V S Series 5 Channel Amplifier
R9,399.00
Tax included
The Alpine S-Series Sound Components Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products.
All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models.
The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.
All Digital Design Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A55V measures just 286mm in width x 204mm in length for easy installation in virtually any vehicle. Thermal Protection Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.
One-sided Cable Terminals The speaker and power cable terminals are conveniently located on the left side of the amplifier to allow a clean installation. The power cable terminals accept heavy gauge cables. Low/High-Power Speaker Signal Inputs The 5-Channel RCA speaker signal inputs accept low and high-power signals.
This makes it easy to connect the S-A55V directly to your original car stereo, regardless of your head unit’s power output (RCA connectors with open cable leads are available separatly). Control Your Subwoofer You can connect the RUX-KNOB2 remote bass knod (optional available) to the S-A55V to controll the subwoofer level straight from your dash (applicable only for channel 5 for subwoofer usage).
High-Pass / Low-Pass Filter With this filter switch you can assign the amplification channel (pair) to be used for door speakers or a subwoofer. You can then adjust the cut-off frequency for more precise tuning.
Max Power Output Ratings:
Total Max Power: 1100W
RMS Power Ratings:
Per Channel into 2 Ohms, 14.4V (=1%THD+N): 4 x 60W + 1 x 300W
Per Channel into 4 Ohms, 14.4V (=1%THD+N): 4 x 40W + 1 x 200W
Bridged into 4 Ohms, 14.4V (=1%THD+N): 2 x 120W
Sound Tuning:
Crossover: Variable LPF, 50-400Hz (-12dB/oct )
Crossover: Variable HPF, 50-400Hz (-12dB/oct )
General:
Power Requirements: 14.4 V.DC (9 - 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
High Level Input with automatic power on
Cable size: Power Cable AWG 4, SPK Cable AWG 12
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 30kHz
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-5: 10Hz - 400Hz
THD+N (@ 10W into 4 ohms): <0.03%
THD+N (@ 50W into 4 ohms): <0.07%
Damping Factor: Channel 1/2/3/4: >100, Channel 5: >750
Signal to Noise (@ 50 Watts into 4 Ohms): >98dB
Weight: 2.9 kg
Dimensions:
Heat Sink (WxHxD) mm: 286 x 58 x 204
The Alpine S-Series Sound Components Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products.
All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models.
The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.
